Location
Section: Oslo S–Drammen, Drammenbanen.
Distance from Oslo: 10,72 km.
Contact us
Aleksander Helgi Jóhannsson
Area Manager, Eastern Norway II
Track table
| Track | Platform | Comments | ||||||
|---|---|---|---|---|---|---|---|---|
| No. | Type | Length (m) | Passing loop length (m) | Extended option (m) | Length (m) | Height (mm) | Width (m) | |
| 1 | Hovedtogspor | 220 | 760 | 6 |
Sideplattform Drammenbanen |
|||
| 2 | Hovedtogspor | 220 | 760 | 6 |
Sideplattform Drammenbanen |
|||
| 3 | Buttspor | Drammenbanen | ||||||
| 4 | Buttspor | Drammenbanen | ||||||
| 5 | Buttspor | Drammenbanen | ||||||
Stabling capacity
Get in touch with the contact person for Høvik Stabling Facility.
Train heating installations
| Installation | Location and Capacity | ||||||
|---|---|---|---|---|---|---|---|
| Installation no. | Capacity (kVA) | Stand no. | Local indentity no. | Serving track no. | Voltage (V) | Frequency (Hz) | Maximal continuous current (A) |
| EL-TVA-000139 | 300 | ||||||
| EL-TVA-000140 | 300 | ||||||

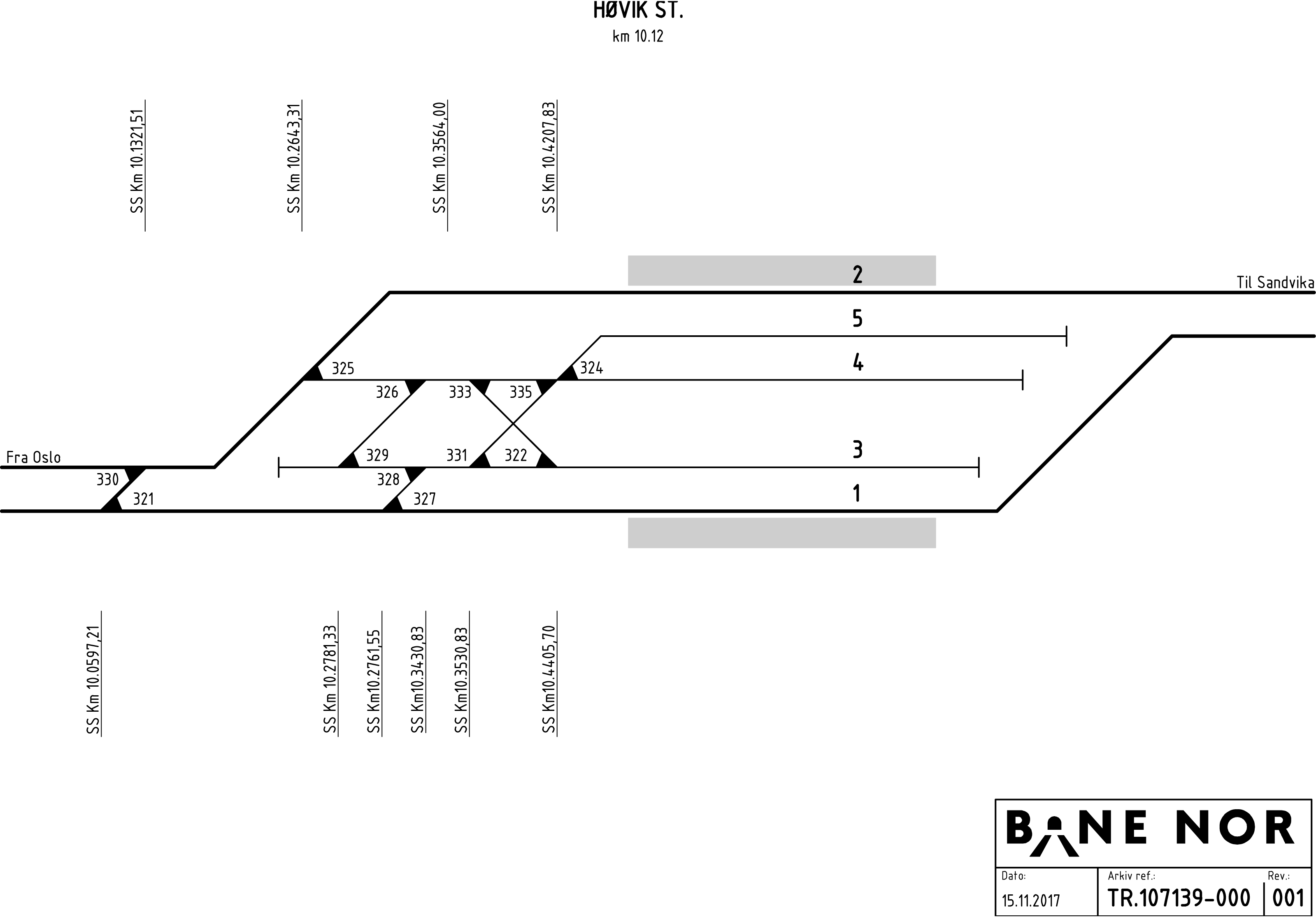

Track plan
