Trondheim S

Track					Platform			Comments
No.	Type	Length (m)	Passing loop length (m)	Extended option (m)	Length (m)	Height (mm)	Width (m)
1	Main track	0	360		115	760/741	3	Side platform.
1	Stub track	40	40					Maintenance track.
1	Stub track	44	44					Maintenance track.
1	Stub track	113	66					Stabling track.
1	Stub track	85	85					Maintenance track.
1	Train track	784	413
1	Other tracks	81						Turning loop.
2	Stub track	464
2	Train track	572	434		252	760/780	8,25	Island platform between tracks 2 and 3.
2	Main track	0	560
2	Stub track	40	40					Maintenance track.
2	Stub track	85	85					Maintenance track.
2	Stub track	44	44					Maintenance track.
3	Main track	750	439					DHB 439.
3	Stub track	85	85					Maintenance track.
3	Stub track	30	30					Maintenance track.
4	Stub track	30	30					Maintenance track.
4	Train track	587	416		252	760/780	7,80	Island platform between tracks 4 and 5.
4	Stub track	50	50					Maintenance track.
4	Stub track	85	85					Maintenance track.
5	Stub track	50	50					Maintenance track.
5	Stub track	45	45					Maintenance track.
5	Stub track	85	85					Maintenance track.
5	Train track	722	329		252	760/780	7,80	Island platform between tracks 4 and 5.
6	Stub track	50	50					Maintenance track.
6	Train track	672	464
6	Stub track	45	45					Maintenance track.
6	Stub track	25	25					Maintenance track.
7	Stub track	50	50					Maintenance track.
7	Stub track	25	25					Maintenance track.
7	Main track	833	718					DHB 678.
7	Stub track	60	60					Maintenance track.
7	Stub track	45	45					Maintenance track.
8	Stub track	60	60					Maintenance track
8	Train track	640	566
8	Stub track	50	50					Maintenance track.
8	Stub track	45	45					Maintenance track.
8	Stub track	25	25					Maintenance track.
9	Stub track	45	45					Maintenance track.
9	Stub track	50	50					Maintenance track.
9	Train track	1578	526		110	640/600	7,80	Island platform between tracks 9 and 7. Track to entrance C 103.
9	Stub track	25	25					Maintenance track.
10	Stub track	514	466					Stabling track.
10	Stub track	25	25					Maintenance track.
10	Stub track	45	45					Maintenance track.
10	Stub track	50	50					Maintenance track.
11	Stub track	606	251
11	Stub track	50	50					Maintenance track.
11	Stub track	177	149					Assigned to the line crew.
11	Train track	172
12	Stub track	322	212
12	Stub track	147	120					Assigned to the line crew.
13	Stub track	328	300					Assigned to the line crew.
13	Stub track	370	270
14	Train track	1050	454					DHB 454.
15	Train track	848	256					DHB 482.
16	Train track	848	197					DHB 390.
17	Stub track	50	50					Maintenance track.
17	Train track	891	345
23	Stub track	209	135		70	350/340	4,60	Side platform. Stabling track.
24	Stub track	174	93					Stabling track.
26	Stub track	580	486					Stabling track.
29	Stub track	39
30	Stub track	227	180
31	Stub track	257	138
32	Stub track	304	247
33	Stub track	304	247
34	Stub track	304	251
35	Stub track	301	239
36	Stub track	301	244
37	Stub track	116	53					Stabling track
43	Stub track	371	318
44	Stub track	370	317
47	Stub track	301	252
48	Stub track	301	252
54	Stub track	24	24
55	Stub track	159	96					Stabling track.
81	Stub track	272	209
82	Stub track	272	209
83	Stub track	228	165
85	Stub track	109	64
120	Stub track	282	282					Maintenance track.
121	Stub track	546	546					Maintenance track.
140	Other tracks	69						Turning loop.
140	Stub track	468	124					Stabling track.
150	Stub track	232	188					Stabling track.
151	Stub track	242	198					To the traverser.
152	Stub track	270	198					To the traverser.
153	Stub track	201	183					Stabling track.
154	Stub track	173	155					Stabling track.
155	Stub track	145	105					Stabling track.
157
160	Stub track	0						Maintenance track.
161	Stub track	0						Maintenance track.
162	Stub track	54	11					Til travers.
163	Stub track	233	193
164	Stub track	432						Engine maintenance track.
200	Stub track	75	21					Stabling track.
201	Other tracks	59						Turning loop.
201	Stub track	87	32					Stabling track.
202	Stub track	125	55					Stabling track.
203	Stub track	85	60					Engine shed.
204	Stub track	85	60					Engine shed.
205	Stub track	274						Engine shed.
207	Stub track	377						Engine shed.
208	Stub track	222						Engine shed.
210	Stub track	294						Engine shed.
210	Other tracks	78						Turning loop.
156A	Stub track	145	106					Diagnosis station.
156B	Stub track	58	58					Maintenance track.
211A	Stub track	217						Wheel lathe track.

Find the station

Address: Sjøgangen 1 7010 Trondheim

Show directions:

See map location for Trondheim S in Google maps

Travel information

Travel planning and tickets online

Ticket sale

Airport

Bus

Car rental

Ferry

Taxi

Bicycle stand

Parking

Parking (HC)

Access to platform (HC)

Assistance service

WC (HC)

ATM

Baby changing room

Elevator

Luggage trolley

Platform shelter

Refreshments

Storage Boxes

Waiting room

WC

About the station

Train directions

Location

Information about the station building

Find the station

Travel information

Tickets

Travel planning and tickets online

Ticket sale

To and from the station

Airport

Bus

Car rental

Ferry

Taxi

Parking

Bicycle stand

Parking

Parking (HC)

Accessibility

Access to platform (HC)

Assistance service

WC (HC)

Schedule

Facilities

ATM

Baby changing room

Elevator

Luggage trolley

Platform shelter

Refreshments

Storage Boxes

Waiting room

WC

Lines

Rail replacement service

About the station

Facts about the station

Train directions

Location

Information about the station building

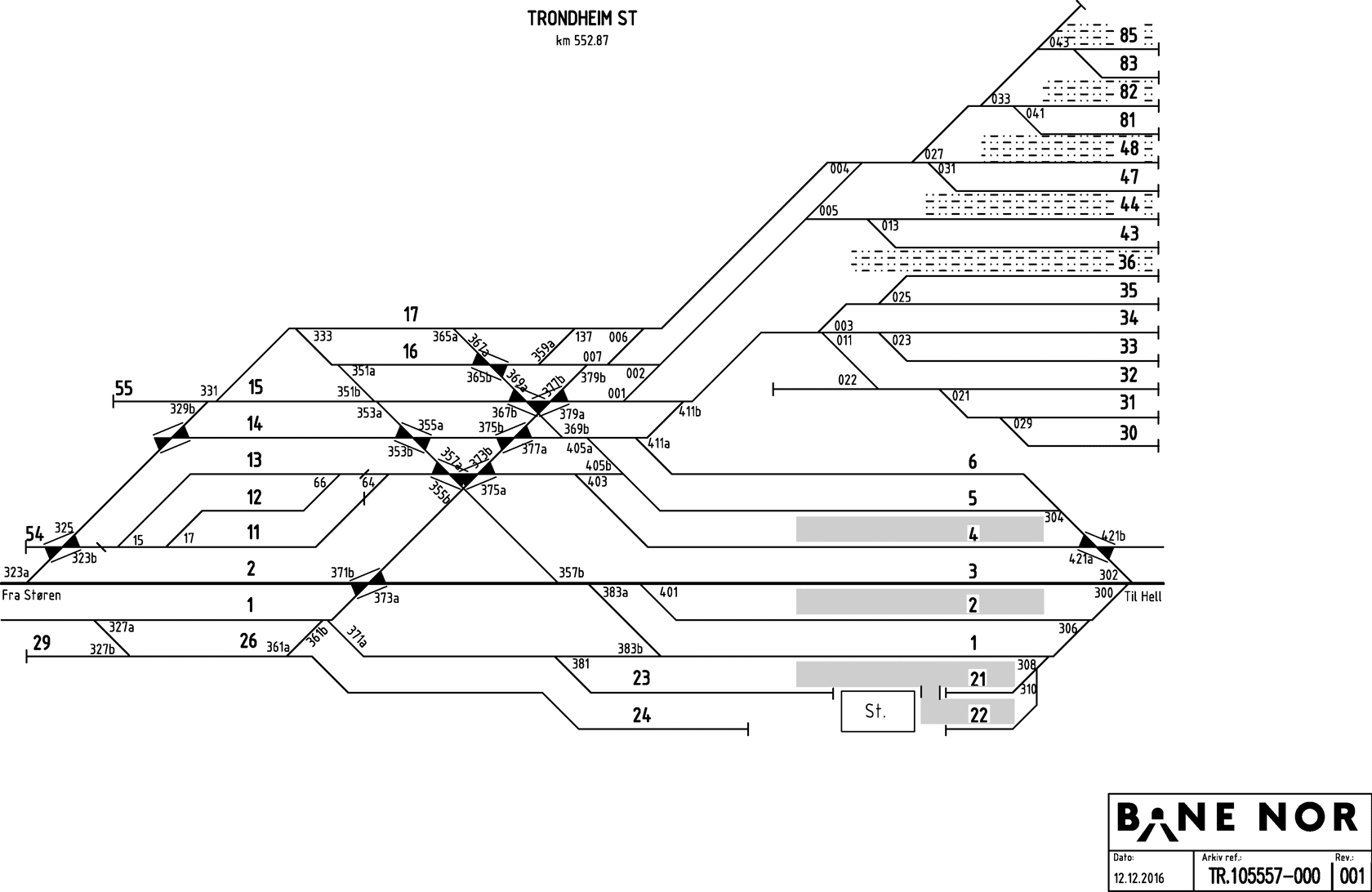

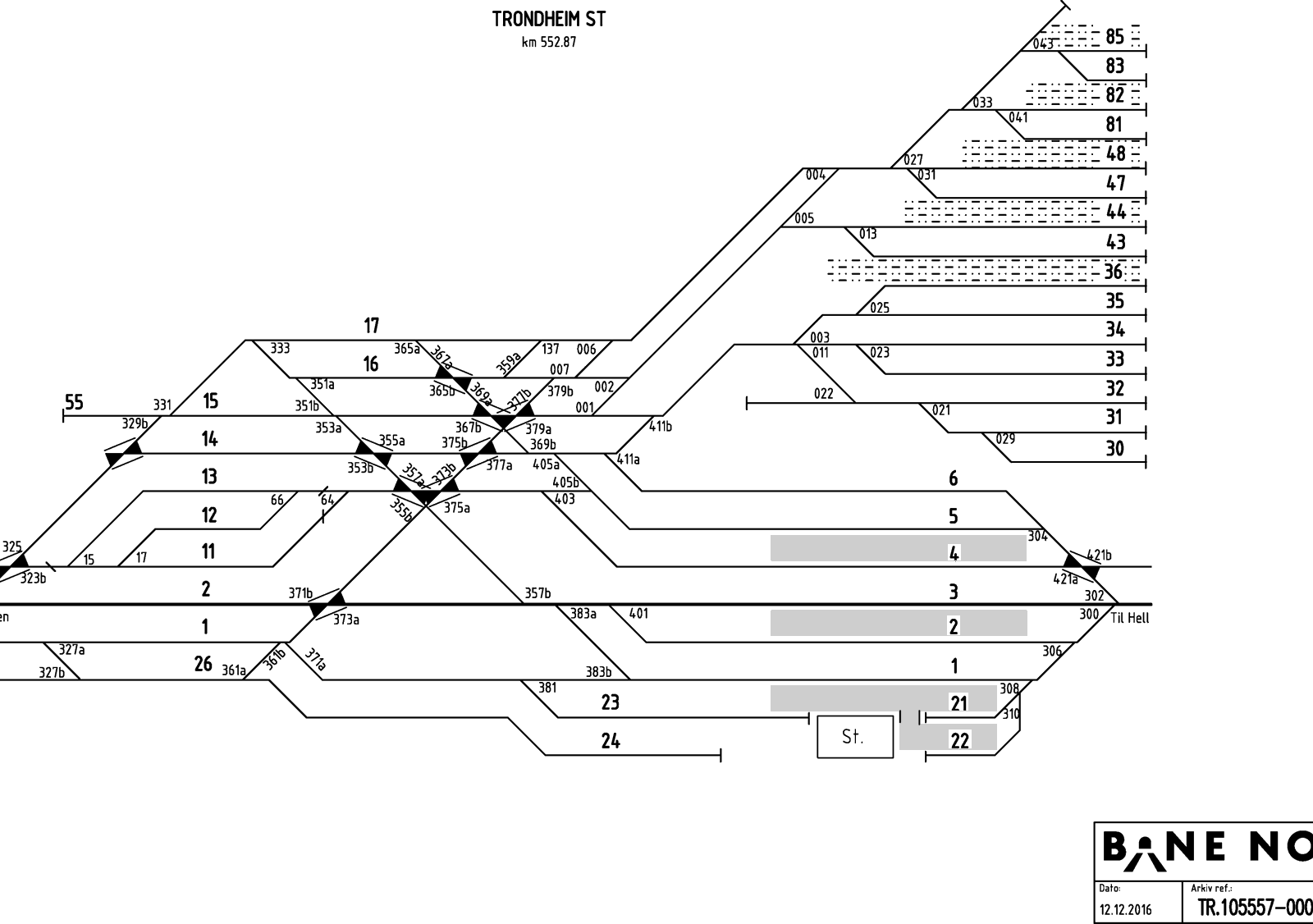

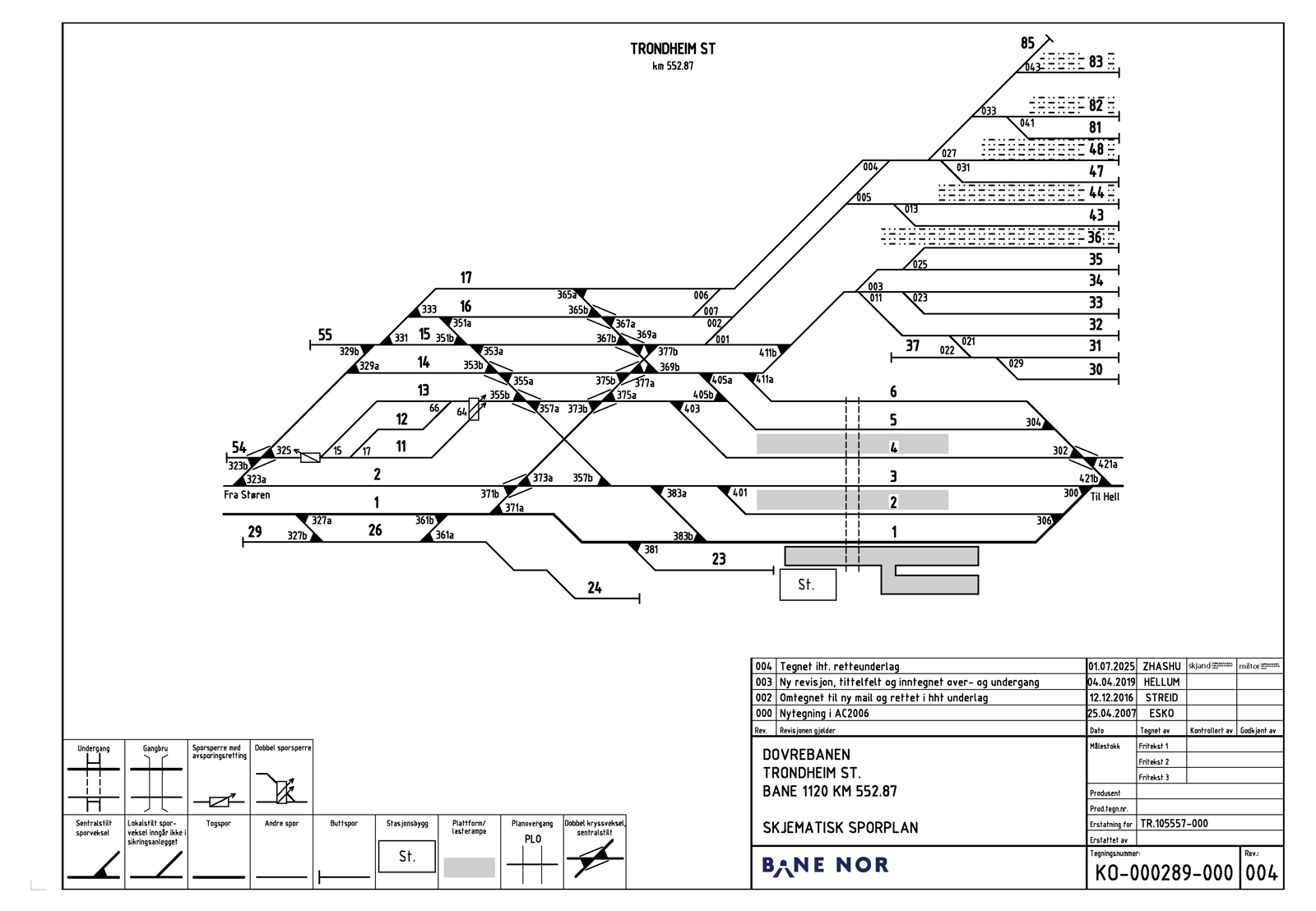

Track plan
